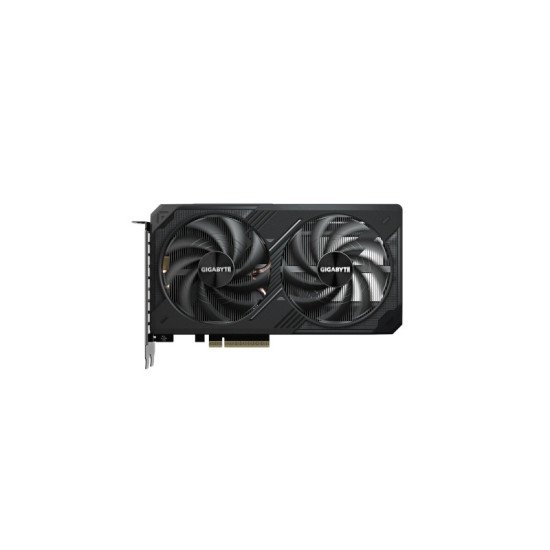

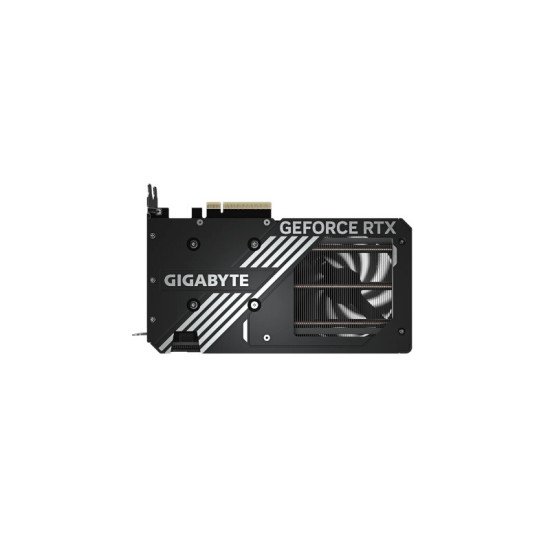

Gigabyte GeForce RTX 5060 Ti Windforce OC 16GB GDDR7
GV-N506TWF2OC-16GD
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Reinforced structure
| Specification | |
| Graphics Processing | GeForce RTX 5060 Ti |
| Core Clock | 2587 MHz (Reference card :2572 MHz) |
| CUDA® Cores | TBD |
| Memory Clock | 28 Gbps |
| Memory Size | 16GB |
| Memory Bus | 128 bit |
| Memory Type | GDDR7 |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi-view | 4 |
| Dimension | L=208 W=120 H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 Pin*1 |
| Output | DisplayPort 2.1b x3
HDMI 2.1b x1 |
| Accessories | Quick guide |
| Warranty |
3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
